T-Rex SilverFlex Geomembrane

T-Rex™ SilverFlex Geomembrane

SilverFlex is a multi-layered geomembrane that has been engineered for use in water retention applications. SilverFlex has a uniquely designed Recoil™ Film technology that oﬀers exceptionally high hydrostatic resistance capable of holding millions of gallons of water. In addition, SilverFlex has an innovative Fusion™ coating technology that provides outstanding sealing properties for watertight panel fabrication. High tensile and tear strength plus dimensional stability is achieved with a woven core made from a proprietary blend of high-grade polymers.

SilverFlex is manufactured with special UV stabilizers and antioxidants designed for water retention applications that require extended exposure to the elements. As the name suggests, our SilverFlex liners have excellent ﬂexibility, outstanding durability and stress cracking resistance. Durable yet lightweight construction provides easy handling and excellent performance in all climates and environmental conditions.

"AvenEx is here to help. We have a geomembrane to suit all geographical and climate conditions. Our team of industry professionals have local knowledge throughout North America, India and Europe."

SilverFlex Features & Benefits

Recoil™ Film technology to offer an exceptionally high hydrostatic resistance
Fusion™ coating technology to offer a watertight seal panels
Thickness - 12 mils geomembrane
Excellent tensile and tear strength
High Puncture, impact and abrasion resistance
Ease of welding at low temperatures
Special UV and Antioxidant package for long term exposure
Outstanding Chemical resistance
Meets NSF/ANSI 61 – Safe for potable drinking water
Non-toxic, no PVC or other hazardous materials used in the construction of the geomembrane
Download SilverFlex Spec Sheet [PDF]

SilverFlex Applications

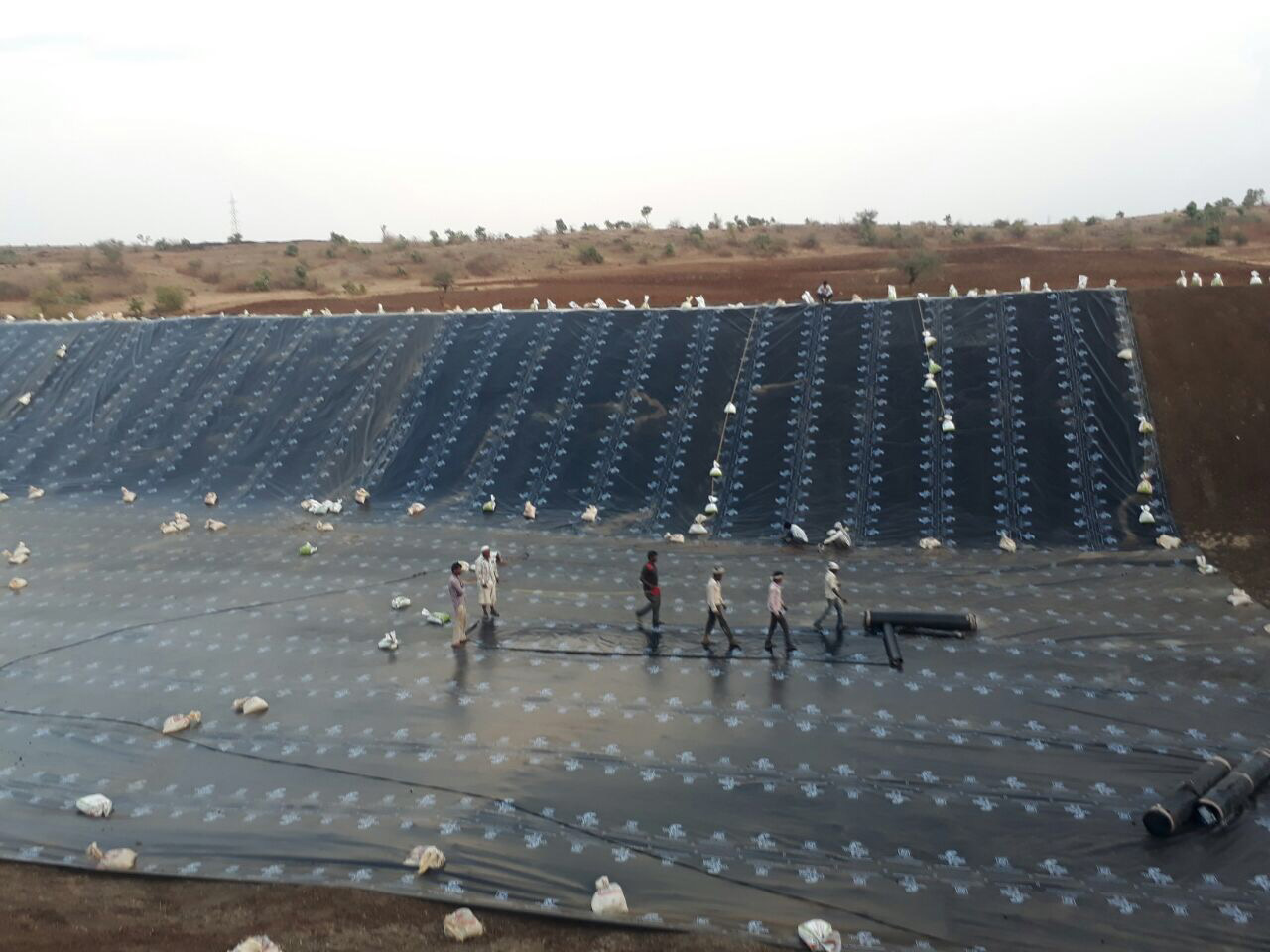

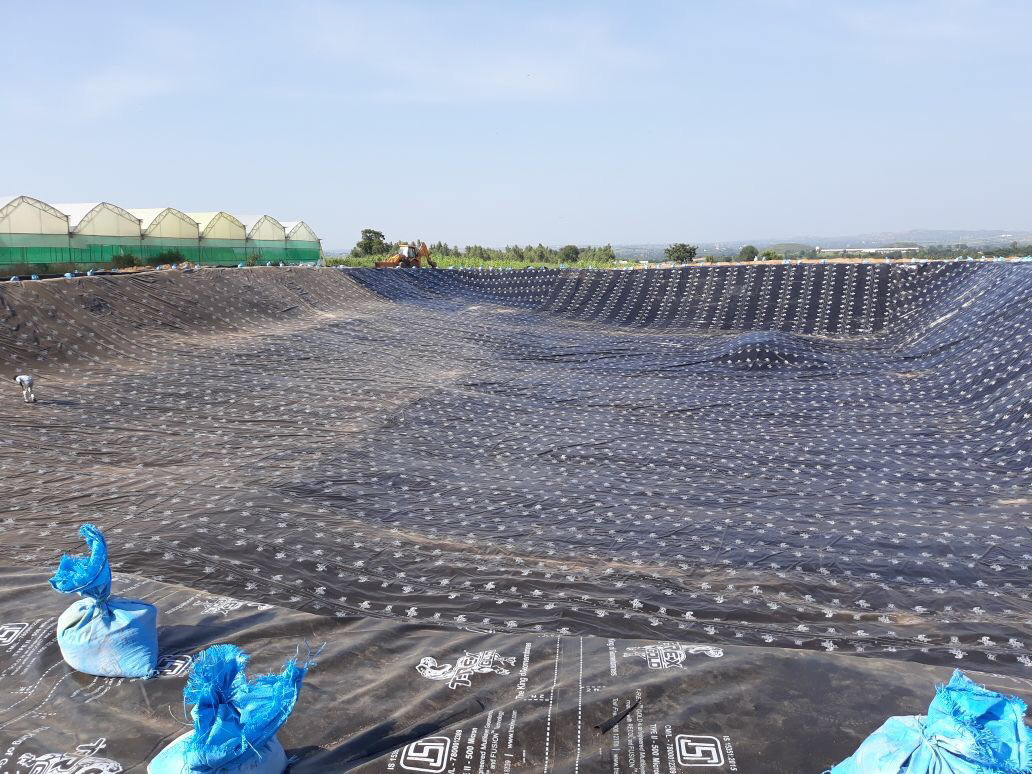

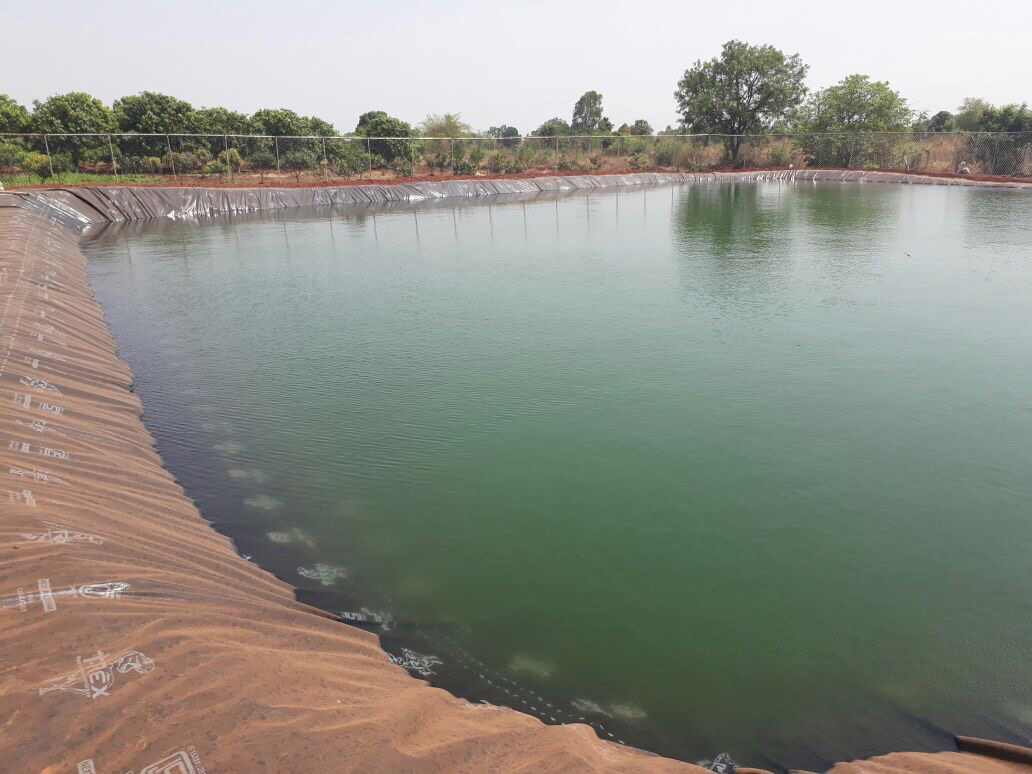

Pond Liners
Oil Field Pit Liners
Containment Liners
Golf Course and Decorative Pond Liners
Remediation Liners
Secondary Containment Applications

SilverFlex Technical Data

Property	Test/Method	Typical Value
Film Structure - Recoil™ Technology
Fusion Coating - Proprietary Polymer Blend
Weight (GSM)	ASTM D5261	260
Nominal Thickness (Mils)	ASTM D1777	12
Hydrostatic Resistance (PSI)	ASTM D751	225
Breaking Strength (lbs)	ASTM D751	Machine Direction 280 \| Cross Direction 220
Tear Resistance (lbs)	ASTM D751	Machine Direction 55 \| Cross Direction 45
Puncture Resistance (lbs)	ASTM D751	90
Bursting strength (Ball burst) (PSI)	ASTM D751	260
Low Temperature Flexibility	ASTM D2136	-50 °C
Accelerated UV Weathering	ASTM G154	> 90% @ 2000 Hours†

All values are ± 10%. †QUV A-340 lamps 8 hrs UV @ 60° C, 4 hrs condensation @ 40°. The test data is based on an average taken over several production runs and should not be considered or interpreted as minimum or maximum values. Values are typical data and not limiting specifications.

"AvenEx is a vertically integrated company with in-house Research & Development professionals at your disposal. If you have a project that requires a geomembrane with specific specifications please do not hesitate to contact us."

EASY TO INSTALL – EASY TO WELD – LONG LIFE
